Enjoy the quality and power of the SD501 right at your kitchen sink - without sacrificing valuable counter space! Simple to operate with the fully featured compact LCD wall-mounted control panel.

LeveLuk SD501U

Product Specifications

Model name / number – Under the counter unit / TYH-401SE

Water source connection – Water supply plug closed type

Power Supply – AC 100V, 50/60Hz (with ground)

Power consumption – App. 230W (if production is done at hi Kangen pH level)

System – Continuous Ionized Electrolysis Water Generator System (with built-in flow rate sensor)

Production rate (gallon(s)/minute)

Kangen Water®: 1.18-1.97

Strong Acidic water: 0.15-0.31

Level Selections

Kangen water / 3 levels (approx. pH 8.5-9.5)

Clean water (pH 7)

Acidic water (approx. pH 5.5-6.5)

Strong Acidic water (approx. pH 2.3-2.7)

Strong Kangen water (approx. pH 11.0)

Electrolysis Capability (continuous use)

Kangen Water: Approx. 60 min at normal room temperature

Strong Acidic water: Approx. 30 min at normal room temperature

Cell cleaning method – Auto cleaning system (periodically controlled by microcomputer)

Applicable water quality and pressure – 0.05 MPa-0.5 MPa (approx. 0.5 kgf/cm2-5.0kgf/cm2)

Electrolysis Enhancer – Forced dissolving adding type

Enhancer Refilling – Indicates by voice, buzzer and LCD

Protector – Current Limiter/Voltage Stabilizer/Thermal Protection

Electrode material – Platinum coated Titanium

Electrode plates – 7

Water Filtering

Filtering medium – Granulated antibacterial activated charcoal, calcium sulfite

Residual chlorine removal – 1,500 gallons (0.4 ppm against 2 ppm tap water)

Initial chlorine removal – 95% or greater

Elements not removable – Metallic ions and/or salinity present in original tap water

Time to exchange the filter – When the filter has treated 1500 gallons of water (depends on quality of original tap water)

Optional/replacement parts

Standard water filter for chlorine removal:

High grade water filter for chlorine removal:

Glycerol-phosphate Acidic Calcium:
3g x 12 packs/box

Electrolysis enhancer:
3 bottles of 0.93pt

Cleaning filter:

Additional Information

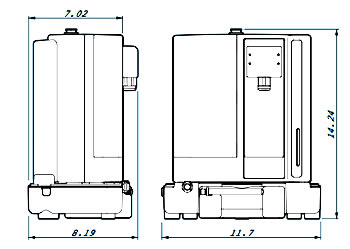

Dimensions (see scale drawing) (inch)

Gross Weight (wet) 13.9 lbs
